Products Description

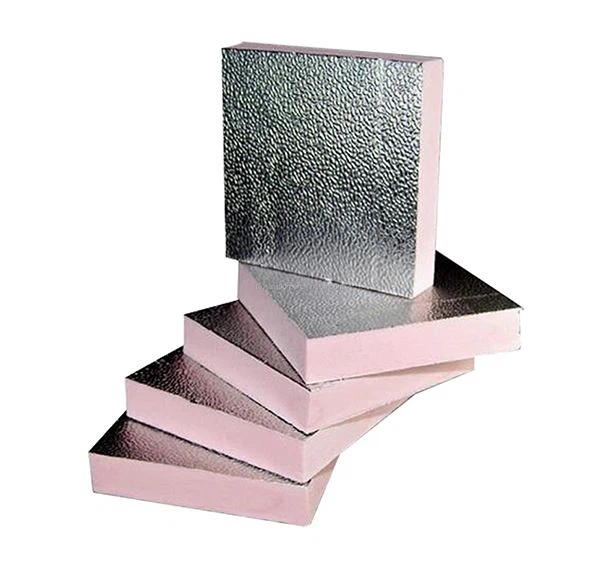

Tenlead building sandwich panel is an innovative building material option for those who are environmentally conscious and looking for energy efficient options. This type of panel consists of a core made from phenolic foam, which is known for its excellent insulation properties, sandwiched between two layers of aluminium sheets or aluminium foil.
|
Item |
Unit |
Specification |
|
Panel Structure |
|
Alu./ Foam/ GI Sheet |
|
Standard Panel Size |
mm |
3950*1200*20 |
|
Alu. Foil Thickness |
mm |
0.06 |
|
GI Sheet Thickness |
mm |
0.18 |
|
Foam Density |
kg/m3 |
60 |
|
Thermal Conductivity |
w/m.k |
0.021 |
|
Compressing Strength |
Mpa |
0.25 |
|
Bending Strength |
Mpa |
1.0 |
|
Combustibility Property |
|
Class 0 (BS476 Part 6 & 7) |
|
Water Absorption |
% |
1.9 |
|
Max Smoke Density |
% |
2 |
|
Dimension Change |
% |
0.3 |
|
Working Temperature |
℃ |
-250- +150 |
|
Maximum Allowable Wind Velocity |
m/s |
≤15 |
|
Continuous Running Maximum Temperature |
℃ |
≤120 |
advantages
Tenlead building sandwich panel is a high-performance building material that comes with a range of benefits. Here are some advantages:
1. Excellent thermal insulation: Tenlead building sandwich panel has one of the highest R-values among insulation materials, which means they provide exceptional thermal and energy efficiency.
2. Fire resistance: They are highly fire-resistant due to the inherent fire-retardant properties of the phenolic foam core.
3. Moisture resistance: The aluminum outer layer of the sandwich panel makes it impervious to moisture, preventing the growth of mold and other allergens.
4. Light weight: The panels are lightweight, making them easy to install and ideal for applications where weight is a concern.
5. High strength: The aluminum layers of the sandwich panel provide high strength and rigidity, making it ideal for building structures and cladding.
application
Tenlead building sandwich panel provides a strong, lightweight and durable solution for a variety of applications including commercial and residential buildings, industrial refrigeration, and roofing and cladding systems. The panels are easy to install, require minimal maintenance, and are fire-resistant, which makes them a great option for buildings that require a high level of safety. The boards are an excellent choice for those who are looking for a cost-effective, energy efficient, and versatile building material option. With their strength, durability, and insulation properties, they offer many benefits for building owners and occupants alike.
where to buy
"Looking for the right place to purchase high-quality sandwich panels? Look no further than Fujian Ten-lead Advanced Material Co.,Ltd. We specialize in the manufacturing and distribution of top-notch building insulation materials. Our expertise lies in providing superior sandwich panels designed to meet diverse construction needs. At Tenlead, we take pride in our professionalism and dedication to offering exceptional products and services. Our factory is renowned for producing premium-grade sandwich panels, ensuring optimal insulation and structural integrity for various construction projects.
how to use
Installing building sandwich panels is a relatively easy task. First, ensure that the foundation where the panels are to be installed is even and level. The panels are then fitted in place by mounting the roofing or wall cladding to the structural frame. The joint seams are sealed with sealant strips or gaskets to prevent water from penetrating the panel. Once the panels are in place, additional insulation may be added between the panels and the frame to increase energy efficiency. The panels are then secured in place with screws or specialized fasteners. Tenlead also provide service to instruct your workers how to install the panels. Care should be taken to ensure that the installation is done in a safe and secure manner, in accordance with local building codes and regulations.
If any interests, please contact us!!
