Thermal Insulation
The biggest advantage of the Insulated Panel for Building is outstanding thermal performance. The panels, composed of phenolic foam, boast exceptional thermal conductivity at 0.021w/m.k, ensuring remarkable insulation efficiency and reduced heat transfer for enhanced energy conservation.
Secondly, these panels, structured with Alu./ Foam/ GI Sheet layers, exhibit robust compressive strength at 0.25Mpa and impressive fire resistance meeting Class 0 (BS476 Part 6 & 7) and Class A (ASTM E84) standards, ensuring reliability and safety in diverse applications.
Insulation Panel Board Features
Durable and Structural Reliability: The insulation panel boards features a dense Foam Density of 60kg/m³, providing durable support. Combined with Bending Strength of 1.0Mpa, they offer structural integrity for various construction needs.
Temperature Resilience and Dimensional Stability: With a wide working temperature range of -250 to +150℃ and a minimal dimension change of 0.3%, these panels demonstrate exceptional resilience to temperature fluctuations while maintaining consistent dimensions over time.
Versatile Structural Strength
Versatile Structural Strength: The insulated panel for building, featuring a robust structure comprising layers of Phenolic Foam and Aluminum/Galvanized Iron Sheets, provide versatile strength suitable for various construction applications. This structural strength ensures durability and reliability, allowing for adaptable use in diverse building projects while maintaining stability and integrity.
Application

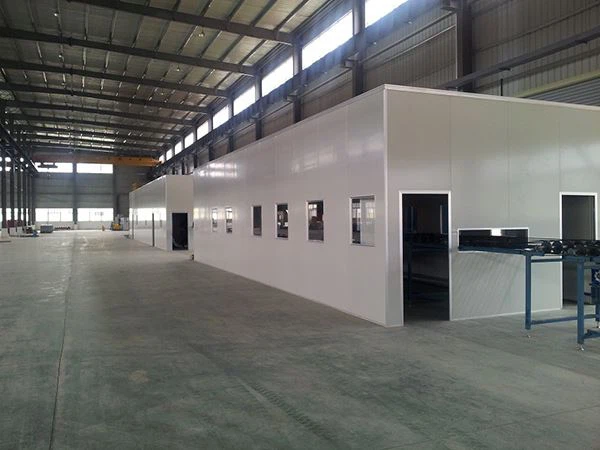

Tenlead Insulated Panel for Building finds applications in cold storage, industrial facilities, and commercial structures due to their thermal efficiency and structural versatility.
|
Item |
Unit |
Specification |
|
Panel Structure |
Alu./ Foam/ GI Sheet |
|
|
Standard Panel Size |
mm |
3950*1200*20 |
|
Alu. Foil Thickness |
mm |
0.06 |
|
GI Sheet Thickness |
mm |
0.18 |
|
Foam Density |
kg/m³ |
60 |
|
Thermal Conductivity |
w/m.k |
0.021 |
|
Compressing Strength |
Mpa |
0.25 |
|
Bending Strength |
Mpa |
1.0 |
|
Combustibility Property |
Class 0 (BS476 Part 6 & 7) |
|
|
Water Absorption |
% |
1.9 |
|
Max Smoke Density |
% |
2 |
|
Dimension Change |
% |
0.3 |
|
Working Temperature |
℃ |
-250- +150 |
|
Maximum Allowable Wind Velocity |
m/s |
≤15 |
|
Continuous Running Maximum Temperature |
℃ |
≤120 |
How to Use
The panels are versatile and straightforward to use in construction projects. Begin by accurately measuring and marking the required dimensions on the boards. Use appropriate cutting tools to achieve precise cuts if needed. Apply adhesive or fasteners on the installation surface and firmly press the boards into place. Ensure a snug fit while aligning them correctly. Finally, inspect the installed boards for uniformity and stability, confirming they provide optimal insulation and structural support as intended for the specific building application.
Professional Manufacturer
Fujian Tenlead Advanced Material Co., Ltd. is a leading manufacturer specializing in premium construction solutions. Renowned for innovation and quality, our company excels in producing high-performance insulation materials, including Phenolic Foam-based panels. Committed to excellence, Tenlead delivers superior construction solutions globally, ensuring top-tier products known for their reliability, durability, and energy efficiency in various building applications.
Packing and Shipping
Tenlead's shipping and packing services prioritize product safety and reliability. We meticulously pack our premium construction materials using top-quality packaging materials to ensure protection during transit. Collaborating with reputable logistics partners, we guarantee efficient and timely deliveries globally. We offer transparent tracking options, providing customers with real-time shipment updates for peace of mind. With a dedicated focus on secure packaging and reliable shipping, Tenlead assures the safe and intact delivery of our superior construction solutions to our valued customers worldwide.
FAQ
Q: What are Insulated Panel for Building?
A: Tenlead panels are composite materials typically constructed with an insulating core material--phenolic foam, sandwiched between two outer layers, often made of metal, aluminum, or other materials. They are used in construction for their thermal insulation properties and structural strength.
Q: What is the expected lifespan or durability of your panels?
A: They are durable and designed to provide long-term insulation, offering long-time after-services.
Q: How many sheets can put in one 40ft container?
A: 40ft container usually can load 660 sheets of size 3950*1200*20mm, or 880 sheets of size 2950*1200*20mm.
Q: What are the applications of them?
A: They can be used for walls, roofs, and floors of both commercial and residential buildings, cold storages, and other specialized applications requiring advanced insulation.
