Thermal Insulation
The biggest advantage of the insulation panel board is outstanding thermal performance. The panels, composed of phenolic foam, boast exceptional thermal conductivity at 0.021w/m.k, ensuring remarkable insulation efficiency and reduced heat transfer for enhanced energy conservation.
Secondly, these panels, structured with Alu./ Foam/ GI Sheet layers, exhibit robust compressive strength at 0.25Mpa and impressive fire resistance meeting Class 0 (BS476 Part 6 & 7) and Class A (ASTM E84) standards, ensuring reliability and safety in diverse applications.
Insulation Panel Board Features
Durable and Structural Reliability: The insulation panel board features a dense Foam Density of 60kg/m³, providing durable support. Combined with Bending Strength of 1.0Mpa, they offer structural integrity for various construction needs.
Temperature Resilience and Dimensional Stability: With a wide working temperature range of -250 to +150℃ and a minimal dimension change of 0.3%, these panels demonstrate exceptional resilience to temperature fluctuations while maintaining consistent dimensions over time.
Versatile Structural Strength
Versatile Structural Strength: The insulation panel board, featuring a robust structure comprising layers of Phenolic Foam and Aluminum/Galvanized Iron Sheets, provide versatile strength suitable for various construction applications. This structural strength ensures durability and reliability, allowing for adaptable use in diverse building projects while maintaining stability and integrity.
Application

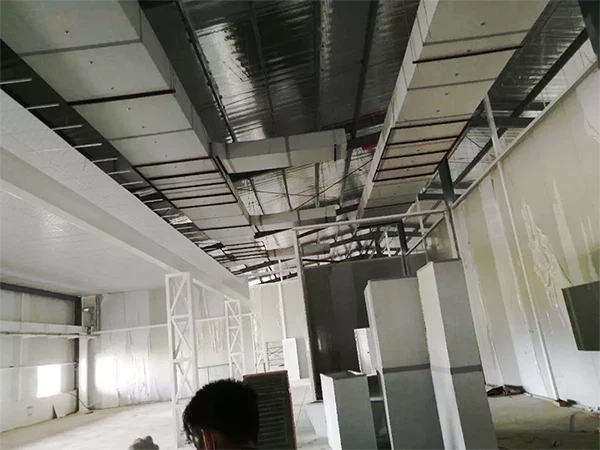

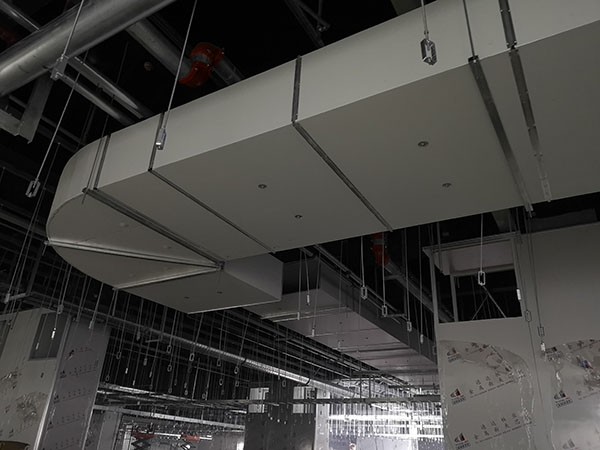

Tenlead insulation panel board finds applications in cold storage, industrial facilities, and commercial structures due to their thermal efficiency and structural versatility.
|
Item |
Unit |
Specification |
|
Panel Structure |
|
Alu./ Foam/ GI Sheet |
|
Standard Panel Size |
mm |
3950*1200*20 |
|
Alu. Foil Thickness |
mm |
0.06 |
|
GI Sheet Thickness |
mm |
0.18 |
|
Foam Density |
kg/m³ |
60 |
|
Thermal Conductivity |
w/m.k |
0.021 |
|
Compressing Strength |
Mpa |
0.25 |
|
Bending Strength |
Mpa |
1.0 |
|
Combustibility Property |
|
Class 0 (BS476 Part 6 & 7) |
|
Water Absorption |
% |
1.9 |
|
Max Smoke Density |
% |
2 |
|
Dimension Change |
% |
0.3 |
|
Working Temperature |
℃ |
-250- +150 |
|
Maximum Allowable Wind Velocity |
m/s |
≤15 |
|
Continuous Running Maximum Temperature |
℃ |
≤120 |
Professional Manufacturer
Fujian Tenlead Advanced Material Co., Ltd. is a leading manufacturer specializing in premium construction solutions. Renowned for innovation and quality, our company excels in producing high-performance insulation materials, including Phenolic Foam-based panels. Committed to excellence, Tenlead delivers superior construction solutions globally, ensuring top-tier products known for their reliability, durability, and energy efficiency in various building applications.
