pink board fire rating
why choose our products

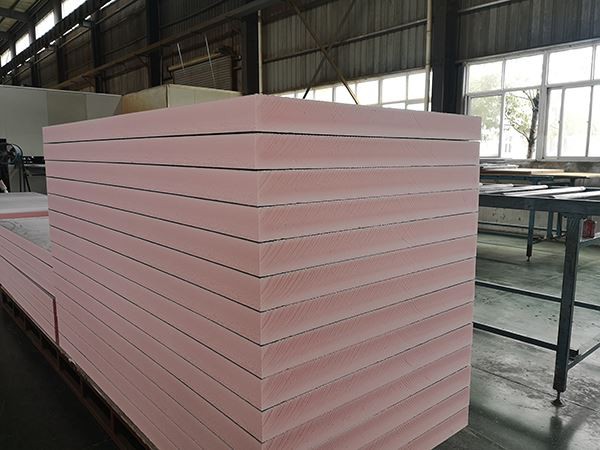

Tenlead's Pink Boards Fire Rating are meticulously engineered with high-quality materials, featuring a Phenolic Foam core integrated within an Aluminum/GI Sheet structure. These panels boast exceptional heat resistance, delivering superior thermal insulation for walls in diverse settings. They are ideal for applications requiring robust temperature control, such as industrial facilities, warehouses, and commercial buildings. Tenlead ensures precise dimensions, varying thicknesses, and customizable lengths for a seamless fit. Renowned for their durability and excellent thermal conductivity, these panels provide effective insulation, promoting energy efficiency while maintaining structural integrity in extreme temperature environments.
|
Item |
Unit |
Specification |
|
Panel Structure |
|
Alu./ Foam/ GI Sheet |
|
Standard Panel Size |
mm |
3950*1200*20 |
|
Alu. Foil Thickness |
mm |
0.06 |
|
GI Sheet Thickness |
mm |
0.18 |
|
Foam Density |
kg/m³ |
60 |
|
Thermal Conductivity |
w/m.k |
0.021 |
|
Compressing Strength |
Mpa |
0.25 |
|
Bending Strength |
Mpa |
1.0 |
|
Combustibility Property |
|
Class 0 (BS476 Part 6 & 7) |
|
Water Absorption |
% |
1.9 |
|
Max Smoke Density |
% |
2 |
|
Dimension Change |
% |
0.3 |
|
Working Temperature |
℃ |
-250- +150 |
|
Maximum Allowable Wind Velocity |
m/s |
≤15 |
|
Continuous Running Maximum Temperature |
℃ |
≤120 |
1. Tenlead pink board fire rating meets ASTM-E-84 Smoke and Flame for use in the US and Canada and BS476 Part 6&7 in British.
2. They are highly fire-resistant. This feature makes them suitable for use in buildings prone to fire hazards, including hospitals, schools, and shopping centers. They can help prevent the spread of fire, ensuring the safety of occupants and property.
3. Tenlead pink board fire rating is durable and can maintain its performance even under harsh weather conditions. It is also resistant to water and moisture, ensuring it remains effective for the long term.
4. Available in diverse sizes, thicknesses, and facing materials, these panels cater to various construction needs, ensuring adaptability and flexibility.
how to use
Here's a general guide on how to use fire-resistant boards:
1. Surface Preparation: Ensure the surface is clean, dry, and free from dust or debris. Remove any loose particles or materials.
2. Cutting and Fitting: Use appropriate tools to cut the fire-resistant boards to the required dimensions. Fit the boards securely into the designated areas.
3. Fixing: Securely attach the boards to the substrate or framing using suitable fixing methods, such as screws or adhesive, as per the manufacturer's guidelines.
4. Sealing Joints: Seal any gaps or joints between boards using fire-rated sealants to prevent the passage of flames or smoke.
5. Testing and Compliance: Verify that the installation complies with local fire safety regulations and standards. Conduct necessary tests to ensure the fire resistance properties are upheld.
6. Maintenance: Regularly inspect the installed fire-resistant boards for any damage or signs of wear and tear. Replace or repair as needed to maintain their effectiveness.
Always follow the manufacturer's instructions and consult with professionals for proper installation and adherence to safety standards.
