Company Profile
Fujian Ten-lead Advanced Material Co., Ltd is a leading high-tech enterprise in China integrating R&D, sales and production. The factory covers an area of 200000 ㎡. It was established in 1998 and has more than years of experience in research, development, production and sales of phenolic foam related products. Tenlead factory covers an area of 200,000 square meters with the staff of more than 200, has been equipped with modern facilities which make sure the on-time delivery during the peak season.
Product Description
Why choose Pre-insulated HVAC Air Duct Panel Phenolic Foam Pre-Insulated Duct Panel For HVAC Air Duct:
Phenolic Pre-insulated Duct Panels consist of Phenolic insulation foam and aluminum foil on both sides. It is energy saving and environment-friendly, and widely used for HVAC duct system.

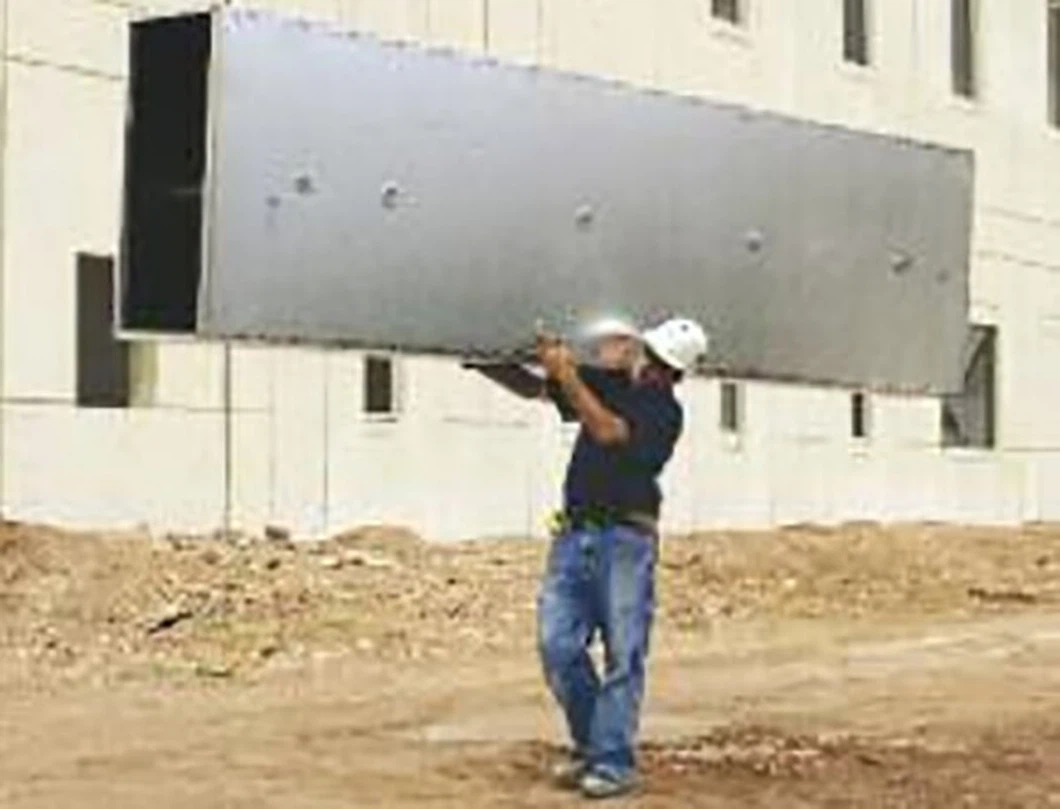

Compared with traditional galvanized Iron (steel metal) ductwork, Pre-insulated HVAC Duct has offer a high performance, light weight and robust system that requires only a single fix installation process. It had become more and more popular all over the world. According to different application or project requirement, the facing of Phenolic duct panel can be 80micron aluminum foil, 200micron aluminum sheet and pre-painted GI sheet.
Advantages of Phenolic Foam Pre-Insulated Duct Panel:
·Space saving: the exceptionally low thermal conductivity of closed cell phenolic foam boards means that appropriate insulation efficiency can be achieved with the thinnest possible material.
·Class 0 fire rating in accordance with BS 476 Part 6 & 7
·Factory applied Class 0 rated aluminum foil or glass tissue facings are available
·Exceptionally low smoke emission
·Excellent moisture resistance as a result of low water vapor permeability and 90% closed cell structure
·Manufactured under ISO 9001:2008 Quality Management System
·Uniform in Appearance as a result of continuously laminating
Product Parameter
|
Item |
Unit | Specification |
| Density | kg/m³ | 35-120 |
| Thermal Conductivity | w/m.k | 0.022 |
| Combustibility Property | Class 0 (BS 476 Part 6 & 7) | |
| Water Absorption | % | 1.9 |
| Max Smoke Density | % | 2 |
| Dimension Change | % | 0.3 |
| Working Temperature | ℃ | -250 to +150 |
