Products Description

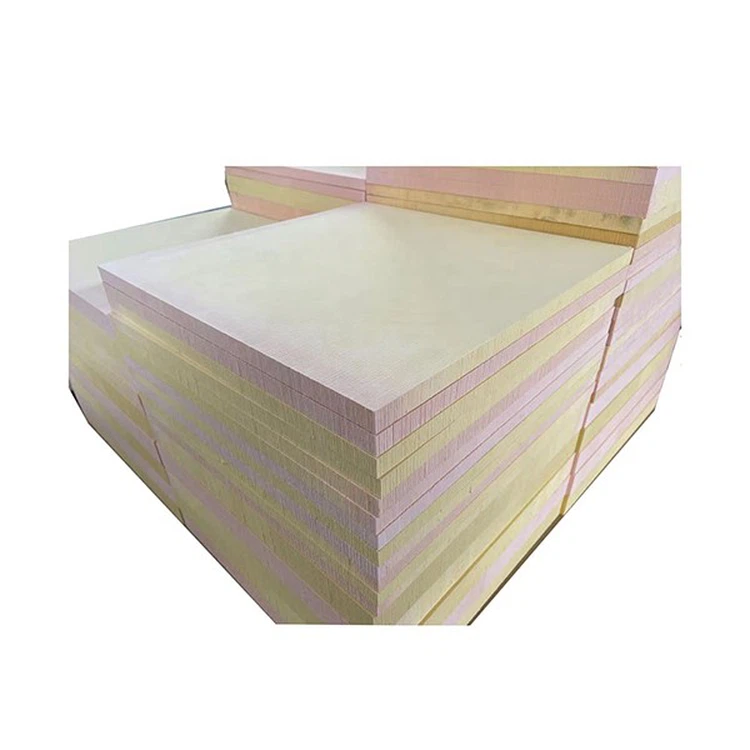

Tenlead pre-insulated roof panels are a type of insulation material that is commonly used in buildings to prevent heat loss and improve energy efficiency. They are made from a type of synthetic polymer called phenolic resin, which is then mixed with a blowing agent and a catalyst to create a foam. The foam is then compressed and molded into panels of various sizes and thicknesses, making it easy to install in different areas of a building. The pre-insulated roof panels have excellent thermal insulation properties, good fire resistance, low smoke emission, and are lightweight. Installing Tenlead insulated panels in a building can lead to significant energy savings and improve the overall comfort of the space.
|
Item |
Unit |
Specification |
|
Panel Structure |
Alu./ Foam/ GI Sheet |
|
|
Standard Panel Size |
mm |
3950*1200*20 |
|
Alu. Foil Thickness |
mm |
0.06 |
|
GI Sheet Thickness |
mm |
0.18 |
|
Foam Density |
kg/m3 |
60 |
|
Thermal Conductivity |
w/m.k |
0.021 |
|
Compressing Strength |
Mpa |
0.25 |
|
Bending Strength |
Mpa |
1.0 |
|
Combustibility Property |
Class 0 (BS476 Part 6 & 7) |
|
|
Water Absorption |
% |
1.9 |
|
Max Smoke Density |
% |
2 |
|
Dimension Change |
% |
0.3 |
|
Working Temperature |
℃ |
-250- +150 |
|
Maximum Allowable Wind Velocity |
m/s |
≤15 |
|
Continuous Running Maximum Temperature |
℃ |
≤120 |
Advantages
Tenlead pre-insulated roof panels are a popular building material due to their numerous advantages:
1. Excellent thermal insulation: They have a high thermal insulation value, making them an excellent choice for use in buildings that require high energy efficiency. This material can keep buildings warm in winter and cool in summer, reducing the need for additional heating or air conditioning systems, which leads to energy savings and lower utility costs.
2. Fire-resistant: They are highly fire-resistant. This feature makes them suitable for use in buildings prone to fire hazards, including hospitals, schools, and shopping centers. They can help prevent the spread of fire, ensuring the safety of occupants and property.
3. Acoustic insulation: The panels are also great for soundproofing purposes. This material can reduce external noise levels, which is especially significant in highly urbanized areas or in buildings near busy roads or airports.
4. Durability: They are highly durable and long-lasting. They are resistant to wear and tear and do not easily deteriorate or corrode, even with exposure to harsh weather conditions, chemical agents, or moisture.
how to use
Tenlead pre-insulated roof panels are an excellent choice for insulating roofs of different kinds of buildings, including industrial, commercial, and residential. The panels are made using a rigid foam core that is sandwiched between two metal sheets. The foam is a highly efficient insulator, making the panels lightweight and easy to install.

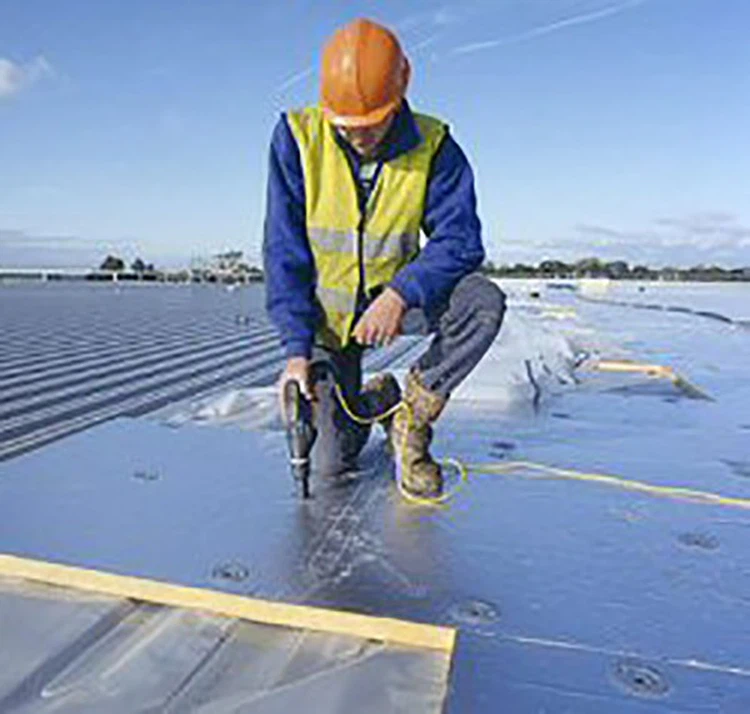

To use the panels, you should start by measuring the dimensions of the roof and calculating the number of panels required. The panels are then cut to the desired size and shape, allowing for any necessary alterations. The panels are then placed on top of the roof and secured with bolts or screws.
If you want to save on energy costs and improve the insulation of your building's roof, consider using Tenlead pre-insulated roof panels. They are a great investment that will pay off in the long run.
