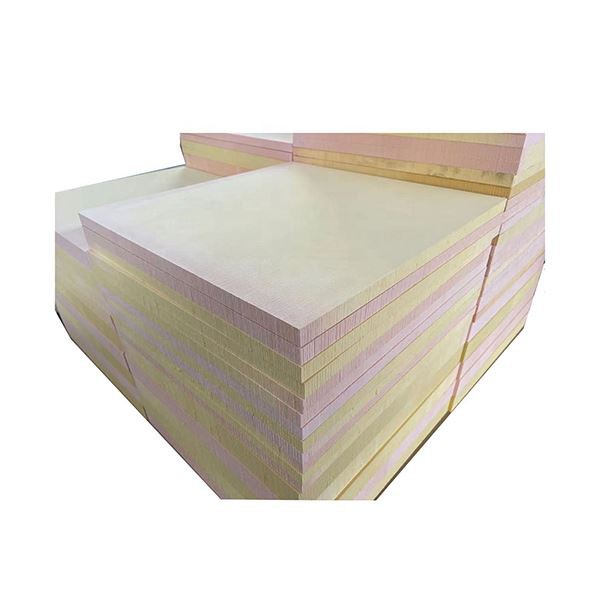

PIR/PU HAVC Duct Panels
What is HAVC Duct Panels
PIR Pre Insulated HVAC Duct Panels are cutting-edge solutions for thermal insulation in Heating, Ventilation, and Air Conditioning (HVAC) systems. These panels feature a core made of Polyisocyanurate (PIR) foam, renowned for its exceptional insulating properties and fire resistance. Encased within durable facings, such as aluminum foil, these panels effectively minimize heat transfer, ensuring energy efficiency and maintaining optimal indoor temperatures. PIR Pre Insulated HVAC Duct Panels are lightweight, easy to handle, and quick to install, making them ideal for various construction projects. Their superior insulation capabilities contribute to reduced energy consumption and enhanced comfort in buildings.
|
Item |
Unit |
Specification |
|
Panel Structure |
Alu./Foam/Steel Sheet |
|
|
Standard Panel Size |
mm |
3950*1200*20 |
|
Alu. Foil Thickness |
mm |
0.06 |
|
Painted Steel Sheet Thickness |
mm |
0.18 |
|
Foam Density |
kg/m3 |
60 |
|
Thermal Conductivity |
w/m.k |
0.021 |
|
Compressing Strength |
Mpa |
0.25 |
|
Bending Strength |
Mpa |
1.0 |
|
Combustibility Property |
Class 0 (BS476 Part 6 & 7) |
|
|
Water Absorption |
% |
1.9 |
|
Max Smoke Density |
% |
2 |
|
Dimension Change |
% |
0.3 |
|
Working Temperature |
℃ |
-250- +150 |
|
Maximum Allowable Wind Velocity |
m/s |
≤12 |
|
Continuous Running Maximum Temperature |
℃ |
≤120 |
Advantages of HAVC Duct Panels
1. Excellent Thermal Insulation: Superior insulation properties ensure energy efficiency and reduced heat loss or gain.
2. Lightweight Construction: Easy to handle and install, leading to decreased labor costs and shorter installation times.
3. Durable and Long-lasting: Resistant to wear, tear, and corrosion, ensuring prolonged performance and minimal maintenance requirements.
4. Fire Resistance: PIR/PU foam offers high resistance to flames, enhancing safety in buildings.
5. Versatile Applications: Suitable for various HVAC systems and construction projects, providing flexibility in design and installation.
